XJQMJ-A50-600 PE Film Blowing Extrusion Machine

XJQMJ-A50-600 PE Film Blowing Extrusion Machine

1.1 The machine take the HDPE or LDPE as raw material, through heating, extrusion, blowing, stretch, winder and final be roll thin film. 1.2 The finished plastic thin film is widely used for supermarket bag, garbage bag, various plastic package bag, farmland film.cote film and compound thin film.

MACHINE APPLICATION

Feature:

1.The structure design of the blowing film unit is reasonable. The extruder, barrel and screw are made of 38CrMoAl high-quality alloy steel

2.After nitriding treatment and precision processing, it has the best hardness and corrosion resistance. The specially designed screw has high output and good plasticization.

3.The main machine and traction adopt frequency frequency control, save energy, adopt surface friction type single winding, the film is smooth and neat.

4.It is suitable for blowing low density polyethylene (LDPE), high density polyethylene (HDPE), linear low density polyethylene (LLDPE) and other plastic films and pal (corn starch) degradable particles. It is widely used in food, clothing, garbage bags, vest bags and other civil and industrial packaging.

MACHINE PARAMETER

Model

A60-1000

Screw Diameter

60mm

Screw Ratio

30:1

Screw Speed

0-100rpm

Max. Output

30-60kg/h

Max. Folding Width of Film

300-1000mm

Thickness of Film

0.01-0.10mm

Main Motor

22Kw

Total Power

40Kw

Weight of Machine

2200kg

Overall Dimensions

5800x2400×4800mm

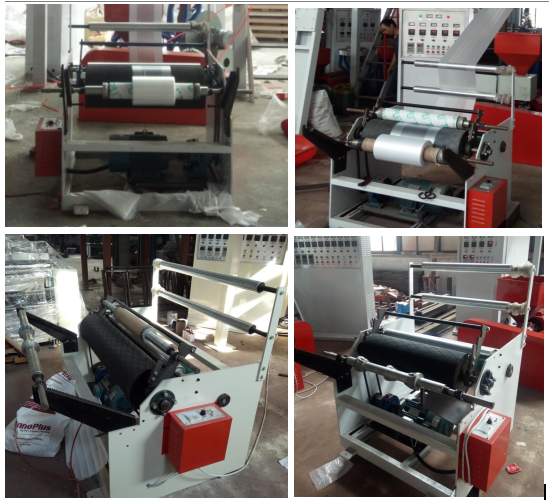

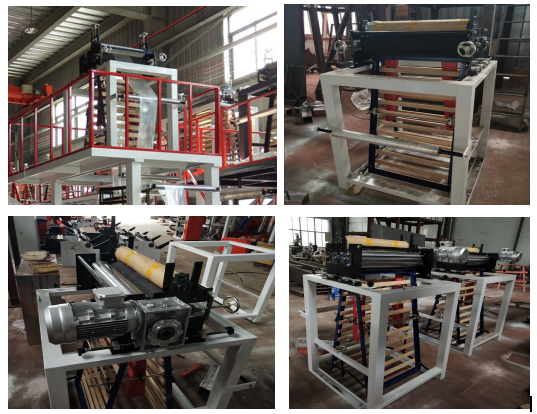

MACHIINE VIEW

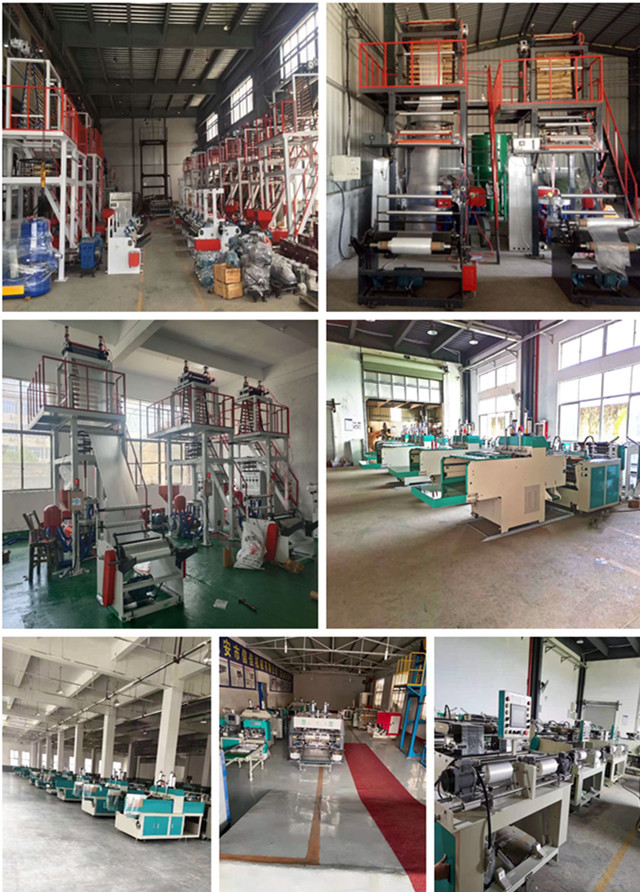

WORK SHOPS

SAMPLE ROOM

MACHINE PACKAGE

FAQ:

1.Q:Are you machinery factory or trading company?

A:Yes,We are machinery factory,and we are professional manufacturer for 21 years
and focus on bag making machine,printing machine,film blowing machine,etc.
2.Q:Where is your factory Located? How can we visit it?
A:Our factory is located in Ruian City,Zhejiang Province,China
From SHANGHAI City by flight is 40minutes,by train is 4hours.
From GUANGZHOU City by flight is 2hours.
3.Q:How many years guarantee?
A:In usually,we have given customer for one years guarantee.
4.Q:What is your delivery time?
A:About 25-30 days
5.Q:What`s the payment method?
A:We can accept T/T,L/C,Western Union,Moneygram, Etc.
6.What is your after-sale service ?
A:We will send our professional technician to install and test the machine.
7.Q: How does your factory do regarding quality control?
Answer: Most our machine mechanical parts are processed by ourselves. So we can better control our quality from beginning. Electrical Part we had cooperated with good foreign brand, such as Yaskawa, NSK, Delta, Panasonic , Sick etc. And all our machine will do running test before shipping.
8 .Q:How does your factory do regarding the quality control ?
A:We are the technical factory, we put more time on the quality control.
9.Q:Do you company provided foreign country machine installation services?
Answer: We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.
10.Q: How your company provided after sales service?

Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) each machines we will give some spare parts free when shipping machines. Within guarantee machine parts damage, we will send to you free by express asap. If customer required engineer go to solve problem is possible.
