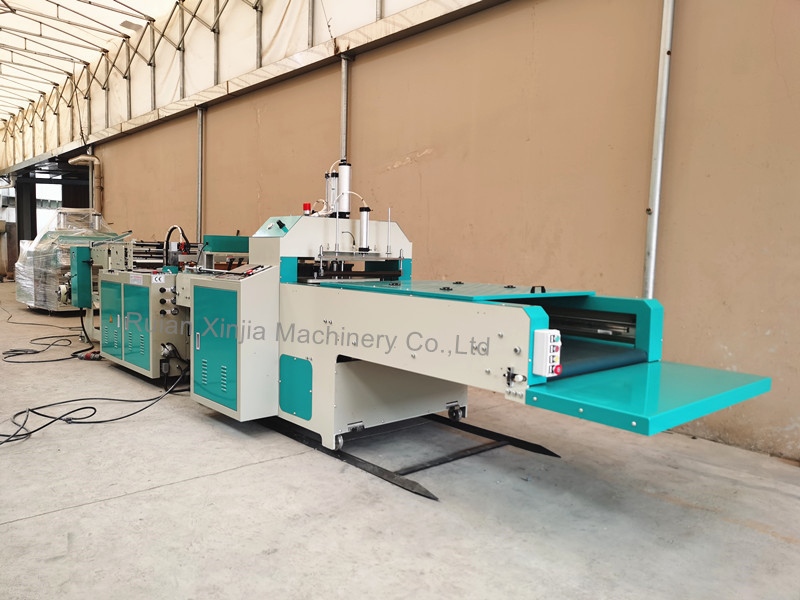

This T-shirt bag making machine is special design for single line high speed T-shirt bag production . independent computers control design and driven by servo motor , high efficiency, easy and stable operation, low noise, non-stop working. Suitable for producing disposable hdpe,ldpe/biodegradable T-shirt bags.
1.New designed

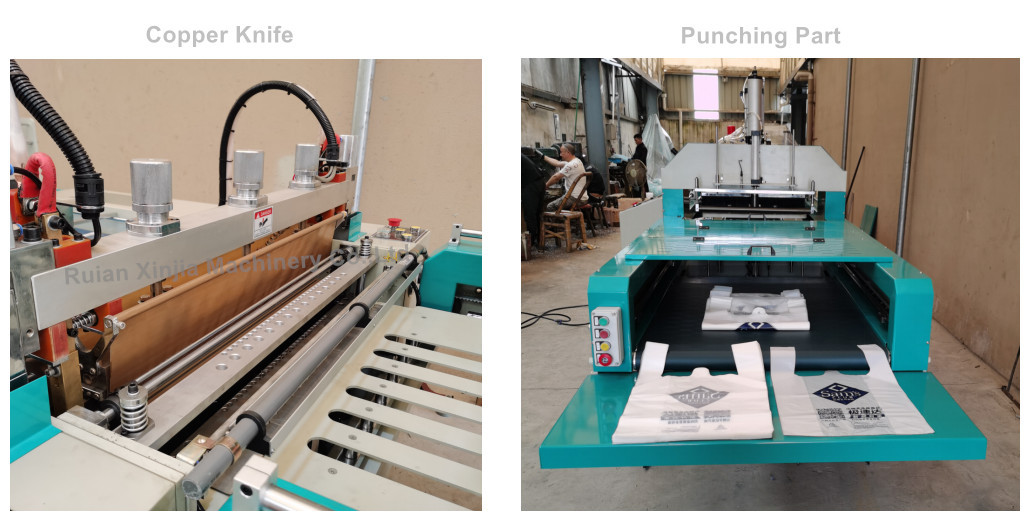

Sealing blade
when blade need be cleared up, it can be turned 100° And fixed. It will be safe and easy to take care.
Auto Punching Machine
Adopt linear guide system and servo motor to control ,its durable ,stably and the bag more neat.
This machine is specialized design for the T-shirt bag ,It can automatically finished production in single line from feeding to the finished production , and it can be automatically alarm in case of have trouble in production , which can avoid waste the bags and protect the machine from being damaged.
This machine adopt an easy operation panel .The troubles and cause can be displayed on the operation panel,which makes it easier for the user to understand the cause and troubles and reduce the time to stop the machine .
This machine adopt a servo motor feeder in order to assure and accurate length of bag. Thus the user has no troubles in affecting the length of bag due ro maintenance and mechanic damages.
This machine adopt an auto feeder connected to the mater motor and can coordinate with it in speed.It can be automatically adjusted,no manual adjustment , coordinate the expansion controller to reduce the fatigue of the feeder in order to keep the pulling force of the plastic bag .
This machine adopt high quality accessories with higher efficiency to reduce the troubles in producing ,the feeder is coordinated with a blower to make the plastic bag fed stably.
Punching part running way adopts high-precision linear slide device ,servo motor control , Japanese pneumatic, and Taiwan booster cylinder.
| Model | XJBXJ-750SVTF | XJBXJ-850SVTF | XJBXJ-1000SVTF |
| Raw material | HDPE ,LDPE ,Biodegradable | ||
| Max bag width | Max.700mm | Max.800mm | Max.900mm |
| Max bag length | Max.850mm | Max.1100mm | Max.1200mm |
| Plastic film Thickness | 0.008-0.05mm | 0. 008-0.05mm | 0.008-0.05mm |
| Production speed | Max. 300pcs/min | Max.300pcs/min | Max.300pcs/min |
| Electric Hot Rate | 4kw | 4.5kw | 5kw |
| Total power | 7kw | 8kw | 10kw |
| Overall Dimension (L*W*H) | 700x138x180cm | 700x158x180cm | 700x178x180cm |
| Machine Weight | 2000kg | 2200kg | 2500kg |

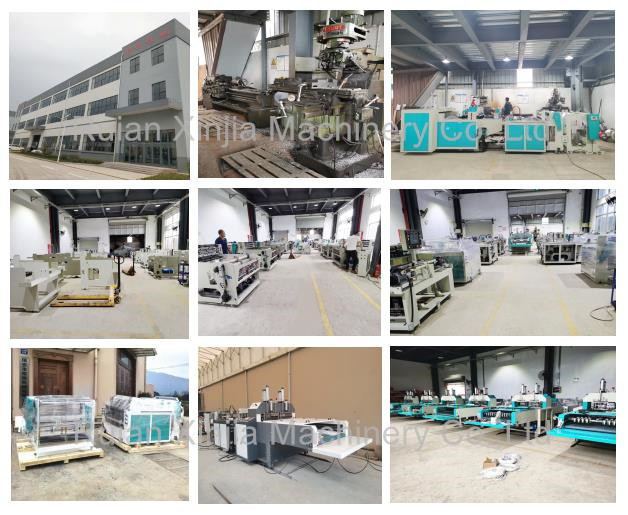

Ruian Xinjia machinery Co.,Ltd is founded in 2008(old name: Ruian Sanfeng Plastic packing machinery factory is founded in 2000 ).For more than 23 years , we are specialized in plastic bag making machines. we have 4 workshops to produce machines for sealing and cutting HDPE, LDPE, recycled film and biodegradable and compostable film.
Xinjia machines all equip high quality brand configuration such as DELTA, F&C, SMC,PANASONIC , FOTEK, AIRTAC,IDEC ,INOVANCE etc.
1.Plastic PE/Biodegradable T-shirt Bag Making Machine
2.Automatic Bottom Sealing Flat Bag on Roll Making Machine With Automatic Core Change
3.Flat Bag Making Machine(Heat Cutting /Cold Cutting )
4.Rolling PE/Biodegradable t-shirt Bag Making Machine
5.T-Shirt Making Machine With Automatic Folding /Binding
6.Milk Tea Cup Holder Bag Making Machine
7.Calendar Bag Making Machine
8.Garbage Bag Making Machine Coreless
9.Draw Tape Garbage Bag Making Machine
10.Disposable TPE , CPE ,PE Glove Making Machine
Our machines have been exporting to East Europe, North America, South America, South-east Asian, Africa, the Middle East and so on.
Welcome domestic and foreign customer visit our factory. And looking forward to keeping good cooperation in the future.
